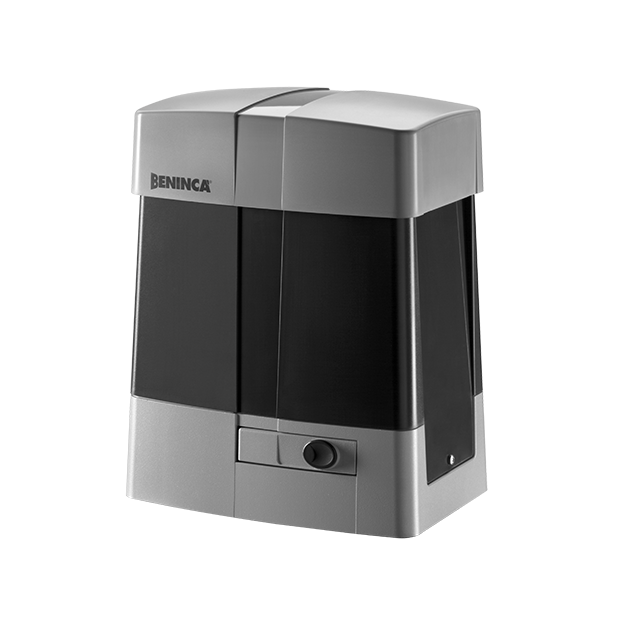

BULL20 HE

230 VAC GEAR MOTOR FOR INTENSIVE USE WITH INTERGRATED CONTROL UNIT, BUILT-IN RECEIVER, MAGNETIC ENCODER AND OIL LUBRICATED REDUCTIONS

Call us about this product



BULL20 HE

 230 Vac | intensive use
    • 230 Vac gear motor for intensive use, with integrated control unit and encoder
    • Self-ventilated motor for more intense use
    • Oil lubricated metallic gear box to ensure maximum performance even at low temperatures
    • Thanks to the characteristics of the new electric motor, this product is particularly indicated for very intensive use
    • The encoder guarantees maximum safety and precision while the gate is moving
    • Steel anti-vandal protective cover (optional)
Gate UsageCommercial
Power Supply230 Vac (50-60Hz)
Motor Supply230 Vac
Max Absorbed Current3 A
Max Thrust1100 N
Max Opening Speed10.5 m/min
Duty Cycle80%
Protection LevelIP44
Operating Temperature-20°C /+50°C
LubricationOil
Max Gate Weight2000 kg
Drive RackM4
Motor TypeElectromechanical
EncoderMagnetic
Weight21.4 kg
