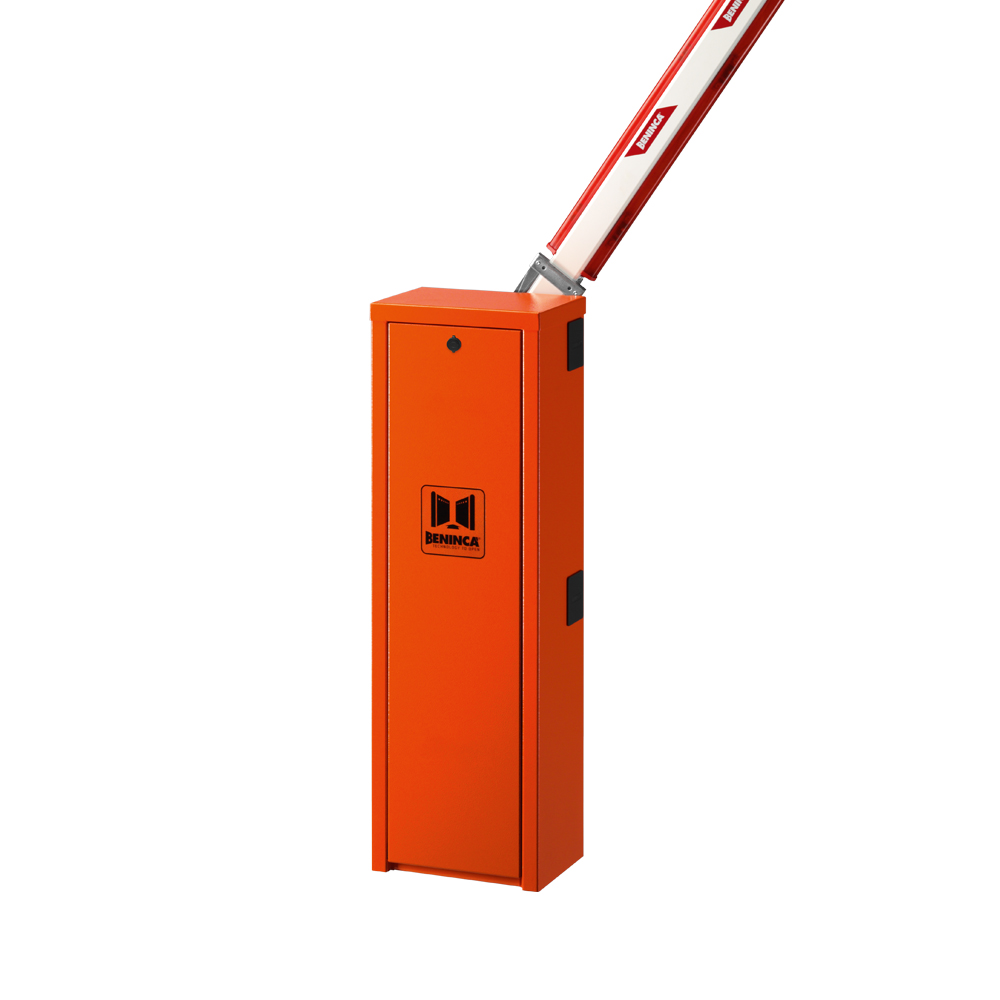

LADY.5

SKU: 9083257 Categories: ,

24 VDC BARRIER FOR INTENSIVE USE WITH INTERGRATED CONTROL UNIT, LIMIT SWITCHES, RECIEVER AND BATTERY BACK-UP CHARGER

Call us about this product



LADY.5

 24 Vdc | intensive use
    • 24 Vdc barrier for intensive use with integrated control unit and battery charger
    • Switching power supply 100÷250 Vac which reduces energy consumption and ensures a long lifespan of the actuator
    • Easy installation and possibility of quick connection for operation of opposed barriers, thanks to the SIS accessory board
    • Reduced energy use on stand-by
    • Option to install PUPILLA photocells using concealed system so that they are perfectly integrated
    • Simple, fast and reliable boom balancing system
    • Adjustable slow-downs
    • Available also in the stainless steel version (LADY.5I)
    • Optional articulated joint set available (LADY.SN)
    • Painted fixed support to suit available (VE.AF)

Gate UsageIndustrial
Power Supply230 Vac (50-60Hz)
Motor Supply24 Vdc
Max Absorbed Current1.6 A
Torque (Nm)195 Nm
Opening Time3.5" - 6"
Duty CycleIntensive use
Protection LevelIP44
Operating Temperature-20°C /+50°C
LubricationGrease

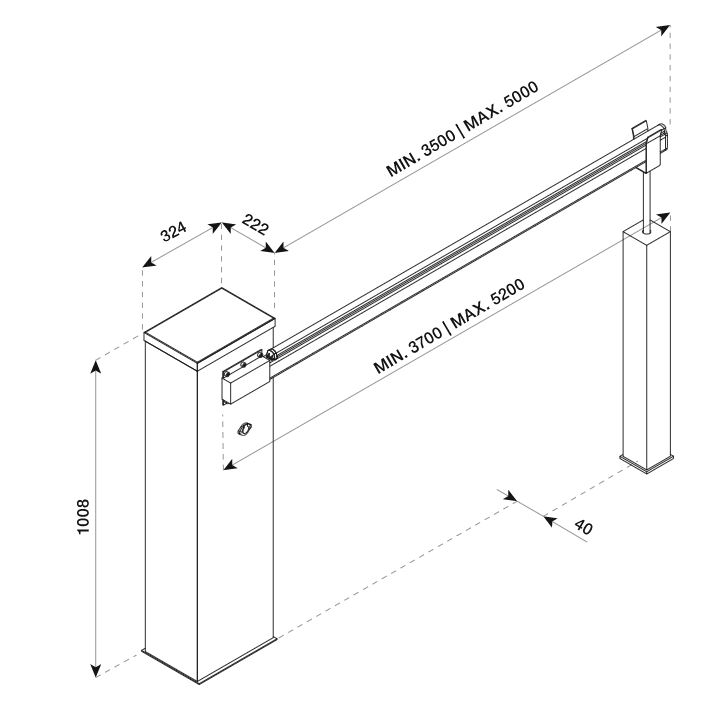

Arm LengthMin 3.5 m / Max 5 m
Motor TypeElectromechanical
EncoderNO
Weight50.8 kg (+7 kg w/ arm or +8.6 kg w/articulated arm)
Built in Physical StopsYES
Articulated BoomYES
