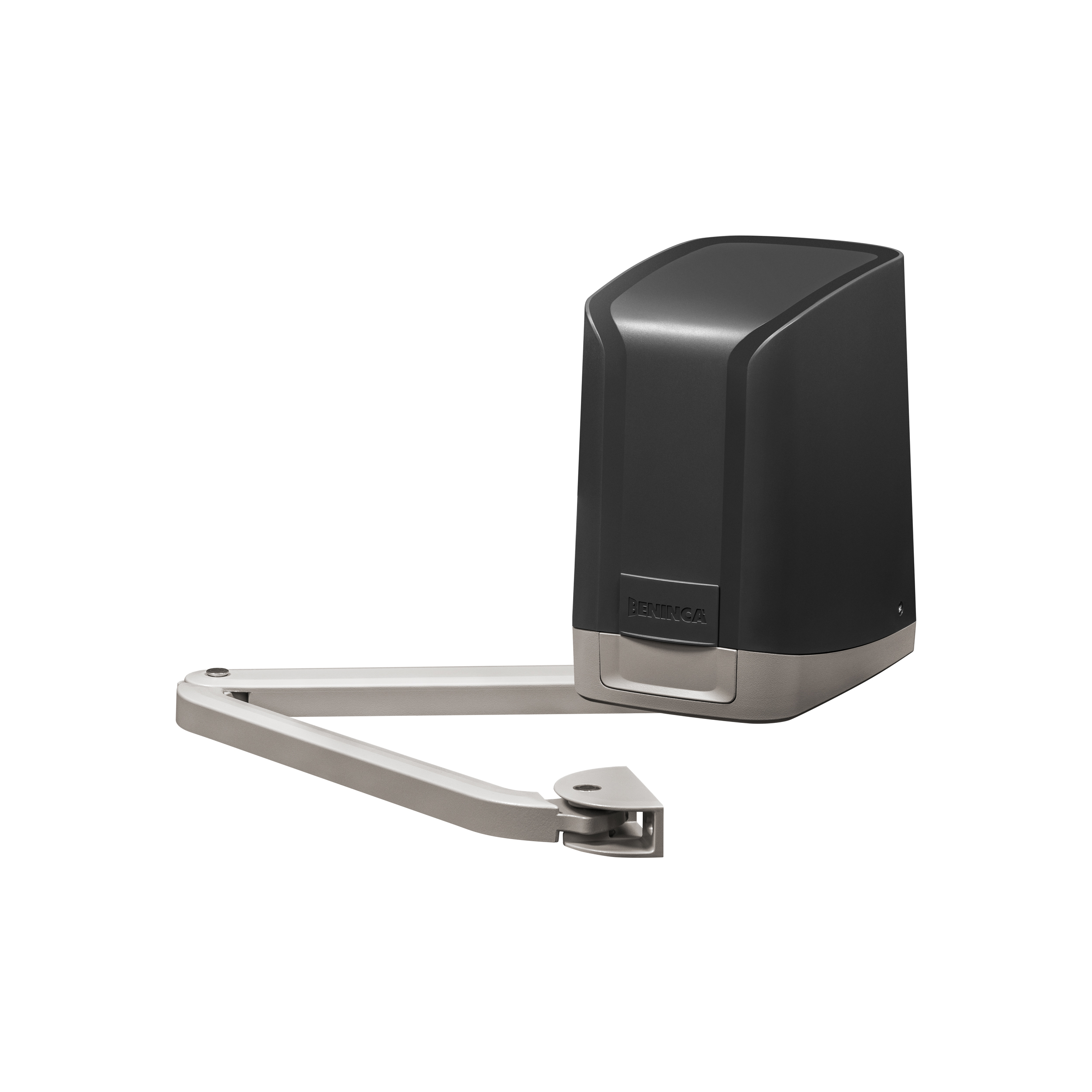

SAM
24 Vdc | intensive use
-
- Irreversible 24 Vdc electromechanical operator for intensive use with integrated control unit and receiver
- The control unit, accessible from above, is positioned on a removable support that facilitates installation operations and provides quick access to the mechanical stops
- 100 ÷ 250 Vac switching power supply that reduces consumption and ensures the long life of the actuator
- Ideal for swing gates with large columns and leaf hinges up to 280 mm deep (just 170 mm wide)
- The encoder guarantees maximum safety and precision while the gate is moving
- STC System device that enables torque management in relation to the position of the gate, guaranteeing maximum safety
- Sturdy arm fitted with a closing lock that helps define the limit switch position during installation | Motor fixing bracket fitted with cable gland
- Operation guaranteed even in the event of a power supply failure through batteries that integrate perfectly into the motor
- Amperometric sensor obstacle detection system to prevent crushing
- Can be connected with the X.BE module for the integration of KNX home automation systems and programmed via the BeUP app and PRO.UP interface
- Option of adjustable flush release that allows opening from the outside in the event of a power supply failure
