BOB3024E.DK

SKU: 959103060 Categories: , ,

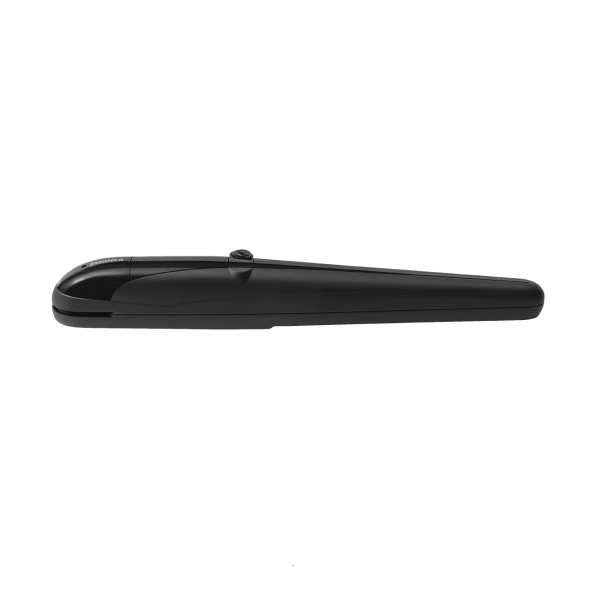

IRREVERSIBLE 24 VDC ELECTROMECHANICAL GEARED MOTOR FOR INTENSIVE USE, EQUIPPED WITH ENCODER AND ADJUSTABLE MECHANICAL STOPS FOR BOTH OPEN AND CLOSE

Call us about this product



BOB3024E.DK

 24 Vdc | intensive use
    • Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder
    • The TRUST24 control unit ensures power consumption in standby mode of < 0.8 W
    • The encoder device ensures maximum safety and precision in the gate moving phases
    • Amperometric sensor obstacle detection system to prevent crushing
    • Optional battery powered operation
    • Patented FACE gears with full metal mechanics
    • Gear and female screw made of bronze
    • Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing
    • Rolled ball screws Ø 20 mm
    • Easy access manual release from above
* Best paired with TRUST24 control unit
Motor Supply24 Vdc
Max Absorbed Current5.5 A
Max Thrust1500 N
Opening Time12"
Duty CycleIntensive use
Protection LevelIP44
Operating Temperature-20°C /+50°C
LubricationGrease
Max Leaf Length3 m
Motor TypeElectromechanical
Standard Stroke270 mm
Max Stroke325 mm
EncoderYES
Weight6.6 kg
Built in Physical StopsYES
