TOM5024E
24 Vdc | intensive use
-

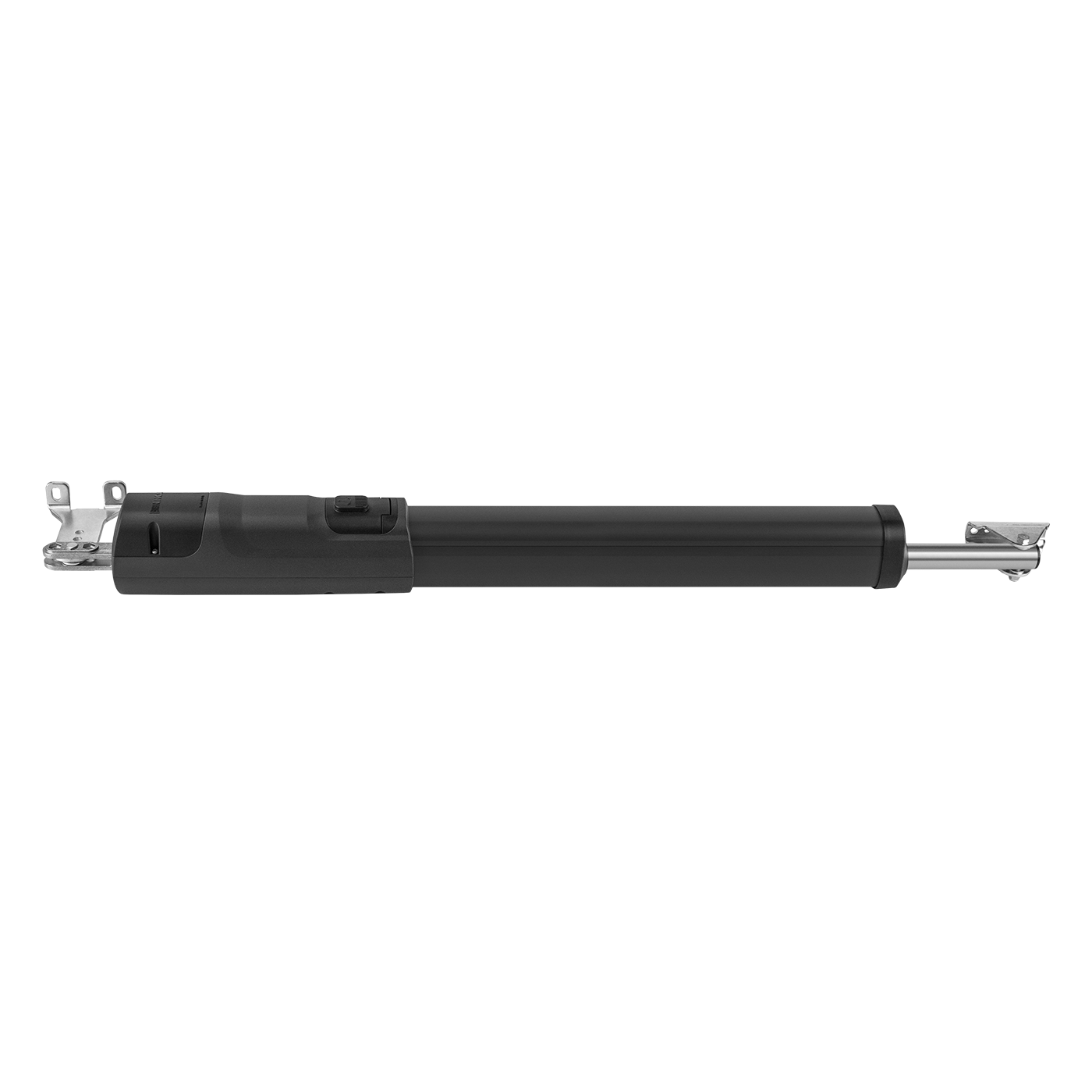

- Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder
- The encoder device ensures maximum safety and precision in the gate moving phases
- Amperometric sensor obstacle detection system to prevent crushing
- Optional battery powered operation
- Patented FACE gears with bronze release wheel
- Reliable and innovative gear motor, thanks to the 2 adjustable mechanical stops in opening and closing accessible from above and positioned under the metal cover of the shaft

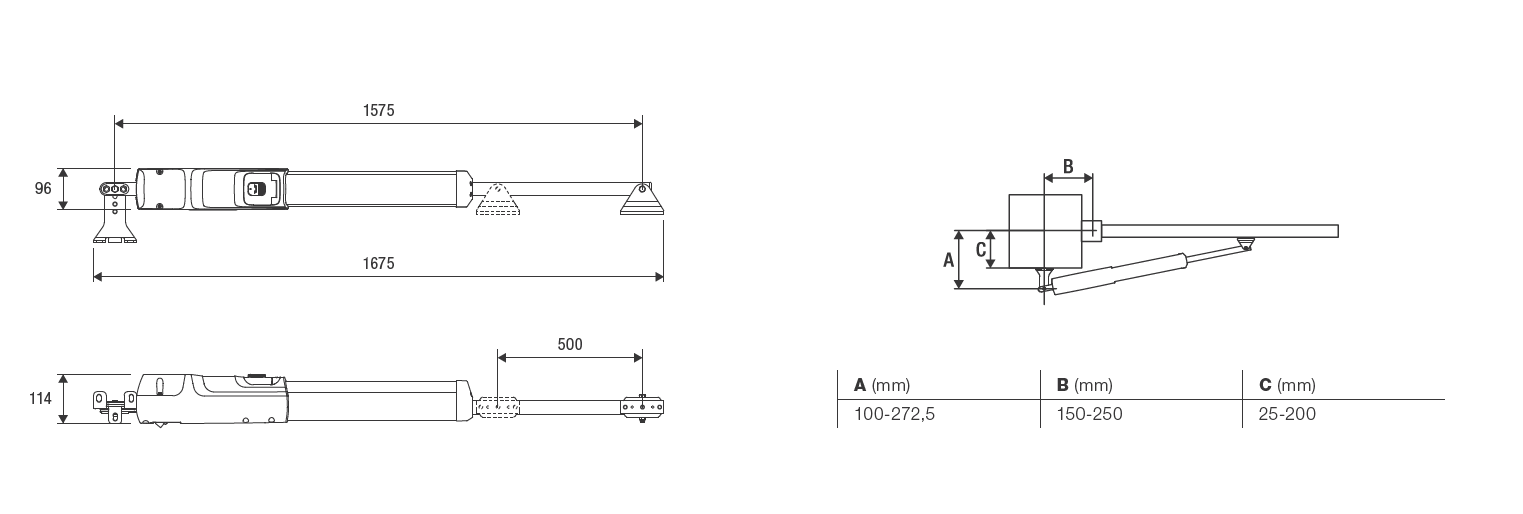

- Ideal for the automation of any type of swing gate thanks also to the compact footprints (only 96 mm width) and screw-in brackets
- The 45° inclination of the wiring cable allows the distance from the ground to be reduced to a minimum
- The rear and front brackets, aligned on the same axis, enable the better distribution of loads by optimizing the lifespan of the actuator
- The worm screw protected by wiper ring and stainless steel shaft make it suitable for dusty or sandy environments, or places with aggressive weather conditions
- Easy access release from above
