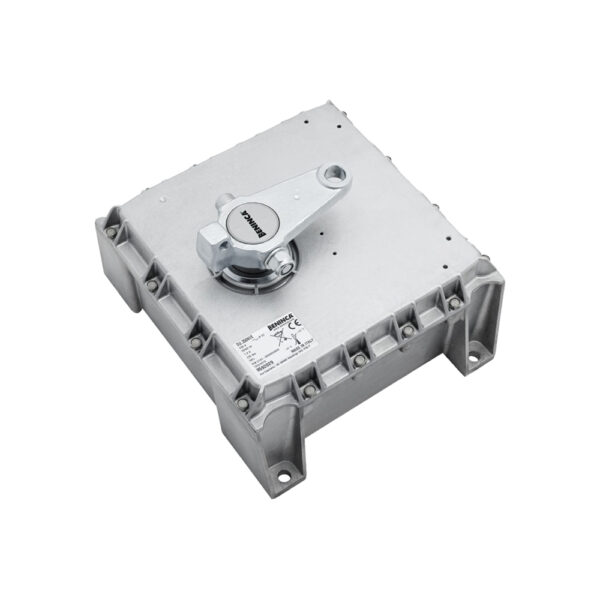

DU.350NVE

SKU: 9592029 Categories: , ,

IRREVERSIBLE 230 VAC ELECTROMECHANICAL OIL SUBMERGED GEARED MOTOR FOR UNDERGROUND INSTALLATIONS, EQUIPPED WITH ENCODER

Call us about this product



DU.350NVE

 230 Vac | intensive use
    • Irreversible 230 Vac electromechanical geared motor for gates of considerable sizes, equipped with encoder
    • Oil submerged gear
    • Adjustable mechanical stop included
    • Self-supporting foundation box with cataphoretic painted finish or stainless steel finish options available
    • Kit comprising personalised release key and components to connect the motor to the gate. Mechanical stop incorporated.
    • Options for openings up to 180°
    • Optional watertight limit switches unit with cam holder disk
* Best paired with BRAINY (230Vac) control unit
Motor Supply230 Vac (50-60Hz)
Max Absorbed Current1.7 A
Torque (Nm)370 Nm
Opening Time16"
Duty CycleIntensive use
Protection LevelIP67
Operating Temperature-20°C /+50°C
LubricationOil
Max Leaf Length3 m
Motor TypeElectromechanical
EncoderYES
Weight20.2 kg (+14.3 kg w/foundation box)
180-Degree Chain Drive AccessoryYES
